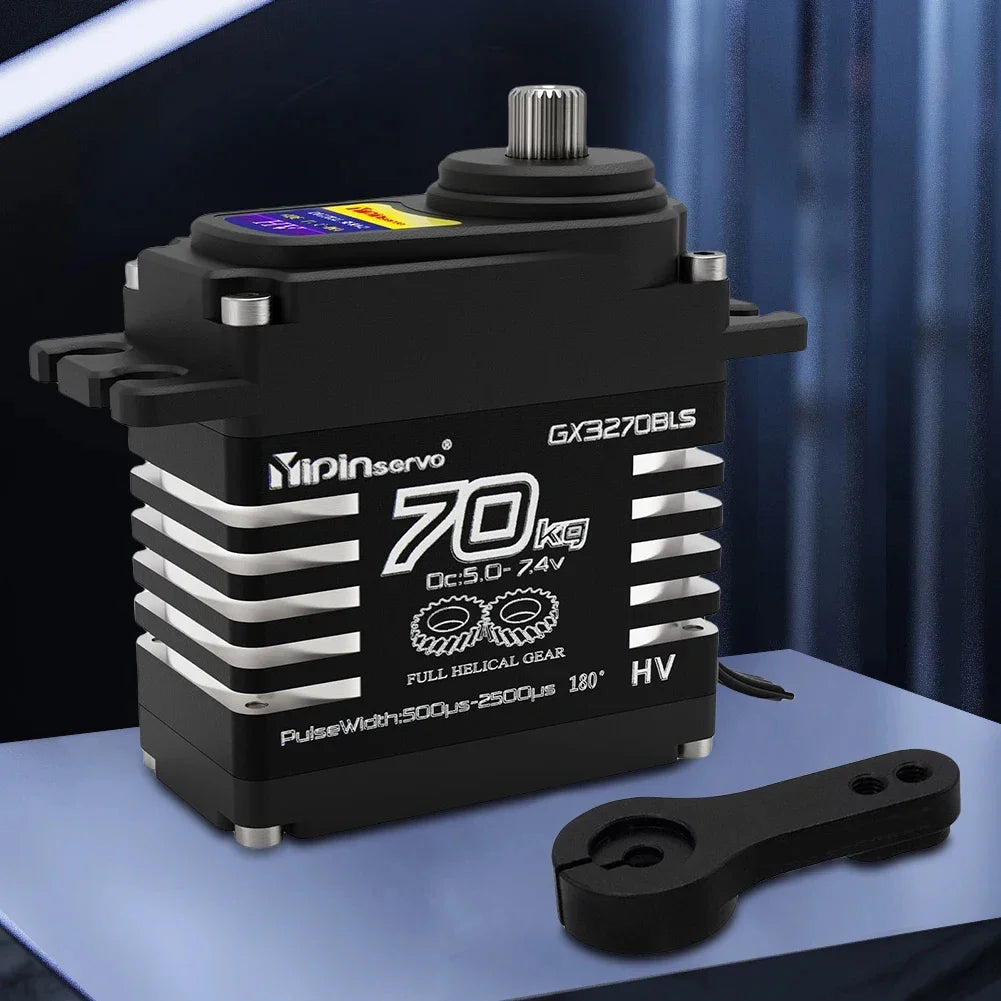

70kg Digital Servos Large Torque Magnetic Induct 8.4v Brushless Motor IP68 Steel Helical Gear For 1/8 1/10 Remote RC Car Robot
70kg Digital Servos Large Torque Magnetic Induct 8.4v Brushless Motor IP68 Steel Helical Gear For 1/8 1/10 Remote RC Car Robot
SPECIFICATIONS
Brand Name: stemedu
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Motors
High-concerned chemical: none
Material: Metal
Origin: Mainland China
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Gear
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

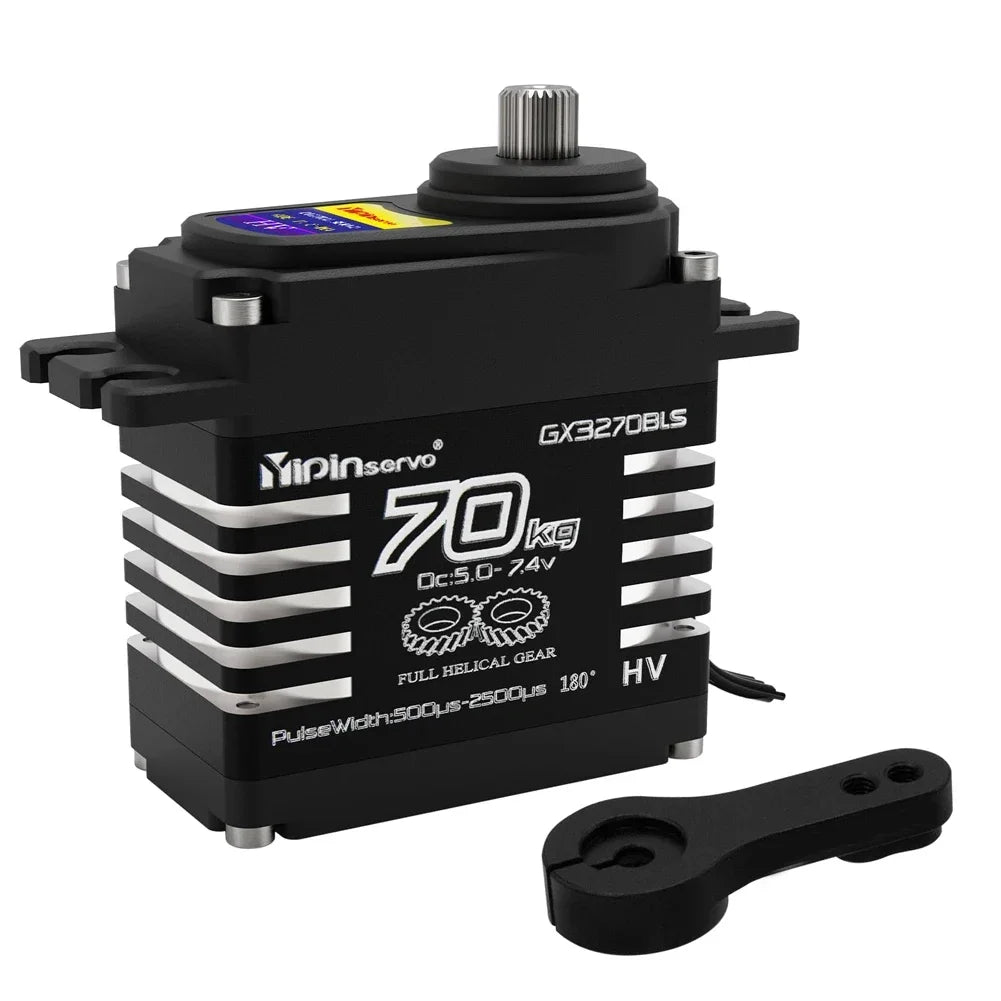

70KG High Torque High Voltage Metal Gear Digital Servo IP68 Brushless Motor Robot Servo for 1/10 1/8 TRX6 scx10 RC Crawler
Features

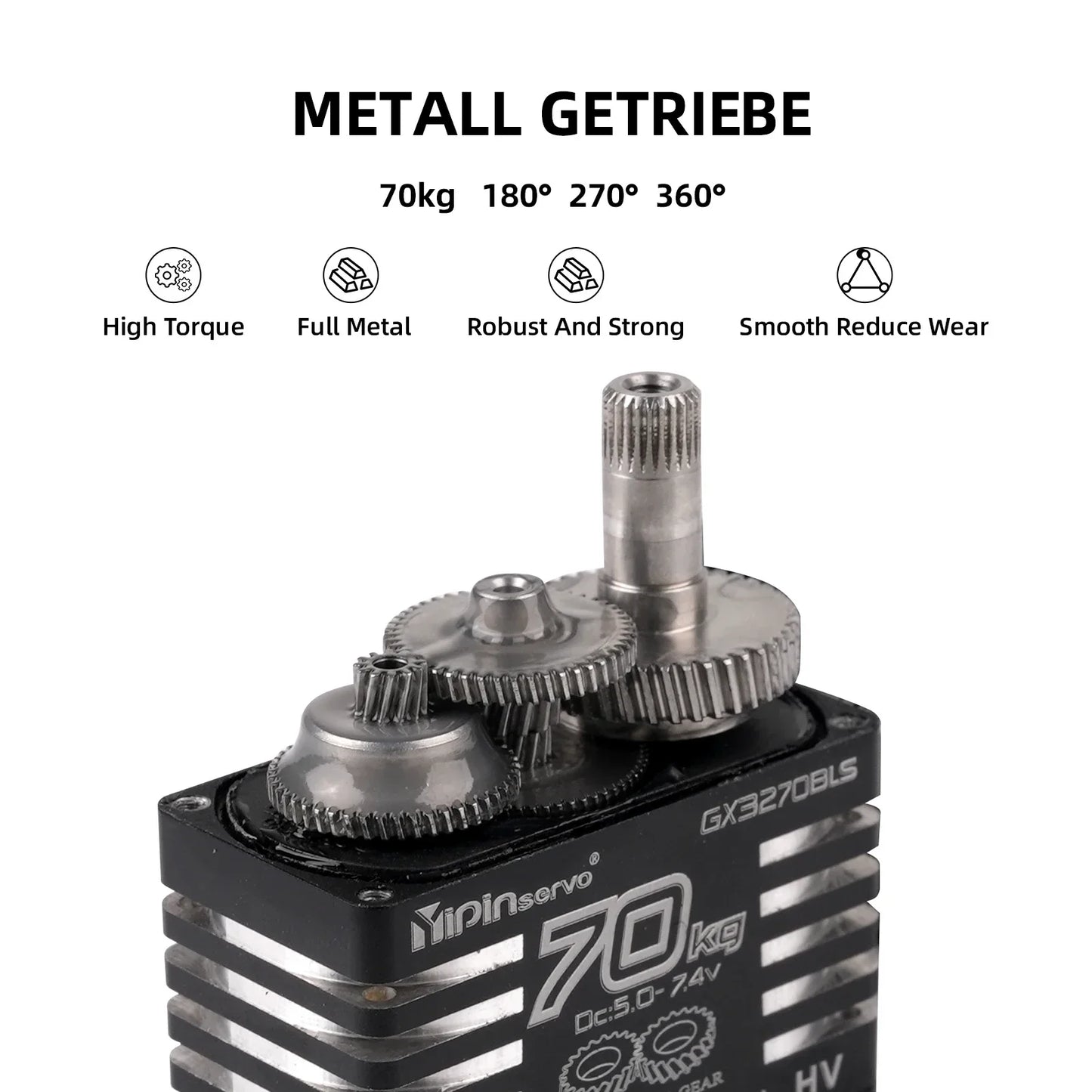

- Metal Gear
- Semi-metal case
- Brushless
- IP68
Description
weight: about 90g

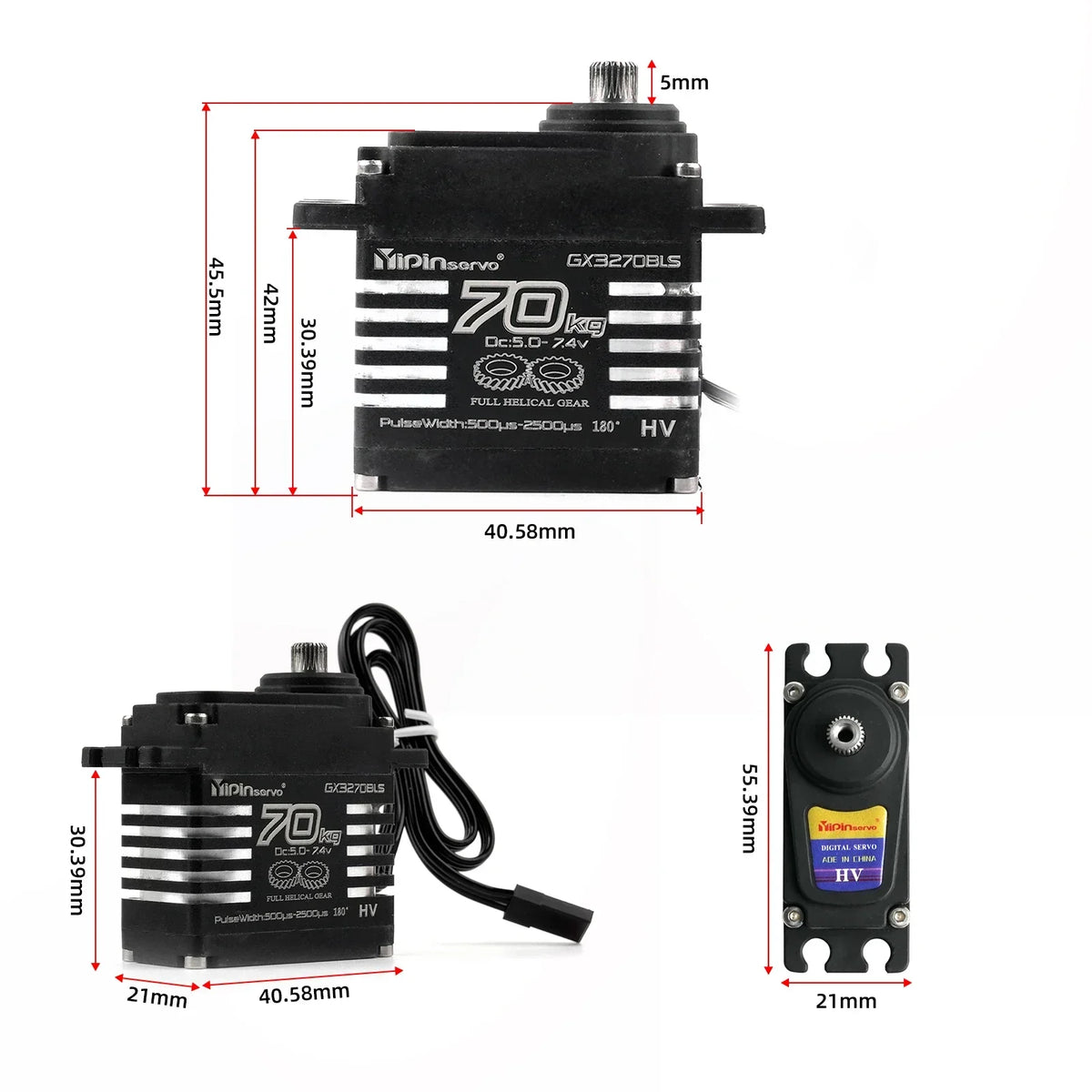

Size: 4.05*2.1*4.17cm
Operating Voltage: 6.0-8.4V DC
Standby Current: ≤20mA
Stall Current 6.0V:≤5A
Stall Current 7.4V:≤7A
Stall Current 8.4V:≤9A
Rated Torque: 6.0V: ≥10kg.cm
Rated Torque: 7.4V: ≥14kg.cm
Rated Torque: 8.4V: ≥16kg.cm
No Load Speed 6.0V: ≤0.12sec/60°
No Load Speed 7.4V: ≤0.10sec/60°
No Load Speed 8.4V: ≤0.09sec/60°
Max.Torque 6.0V: ≥ 55 kgf.cm
Max.Torque 7.4V: ≥ 63 kgf.cm
Max.Torque 8.4V: ≥ 70 kgf.cm

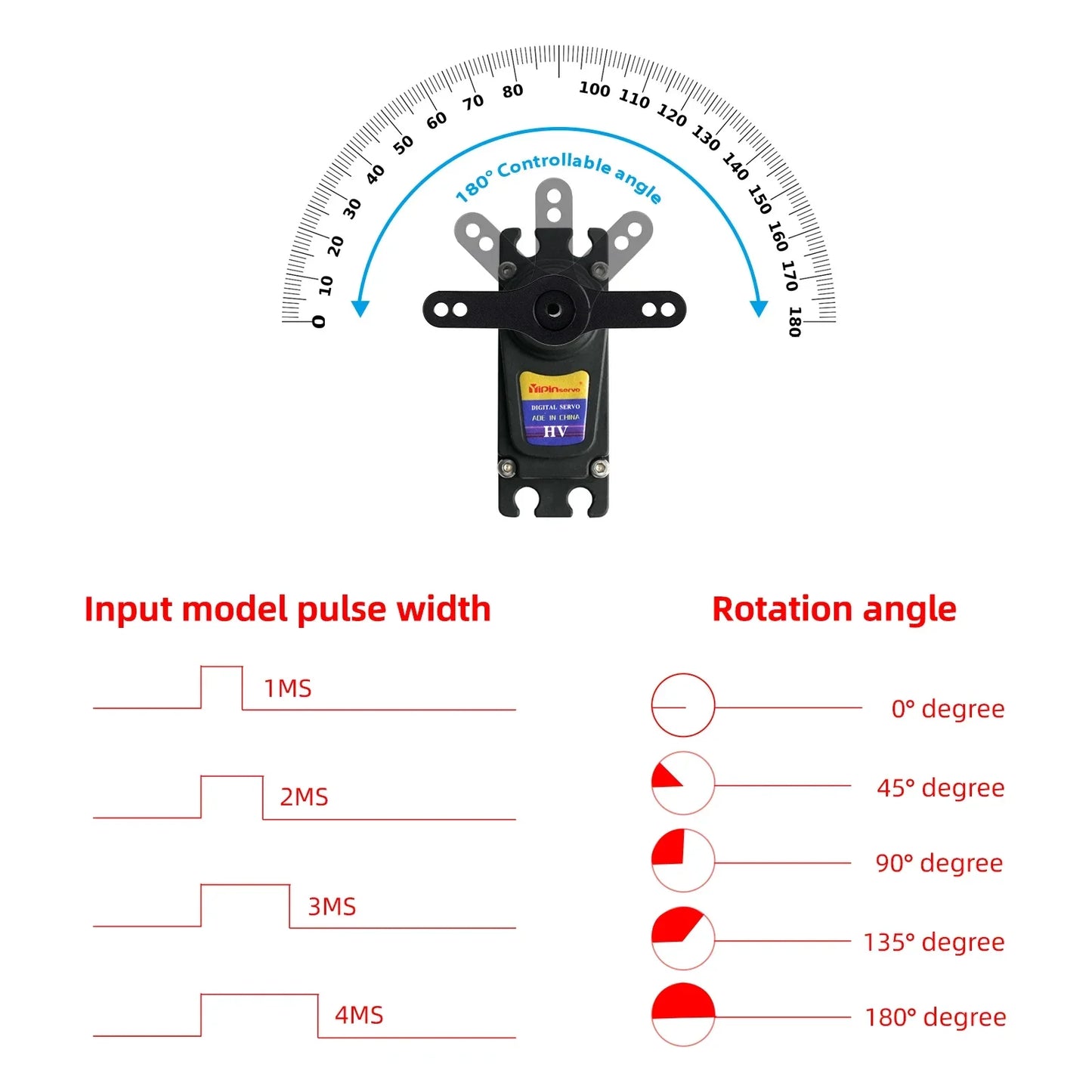

Rotating Direction: ccw(500-2500us)

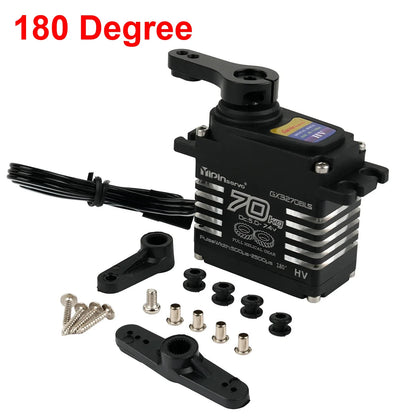

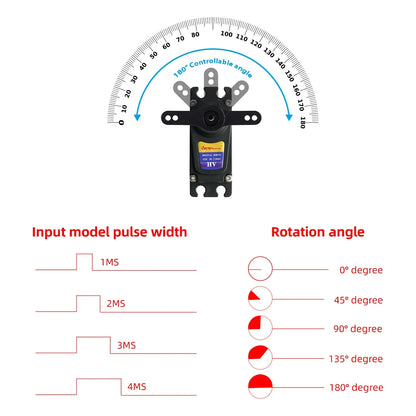

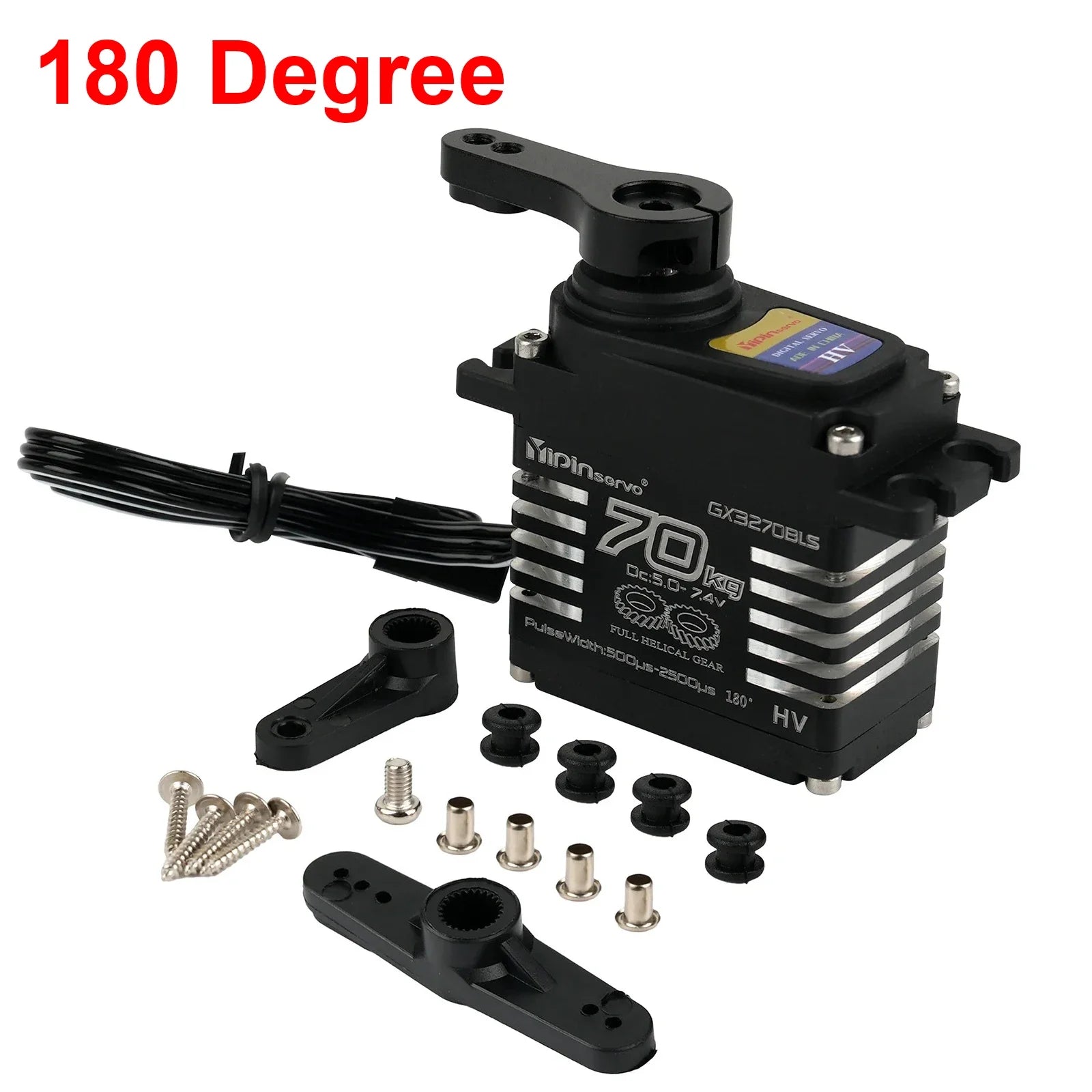

operating Travel Angle: 180±10°(500~2500us)

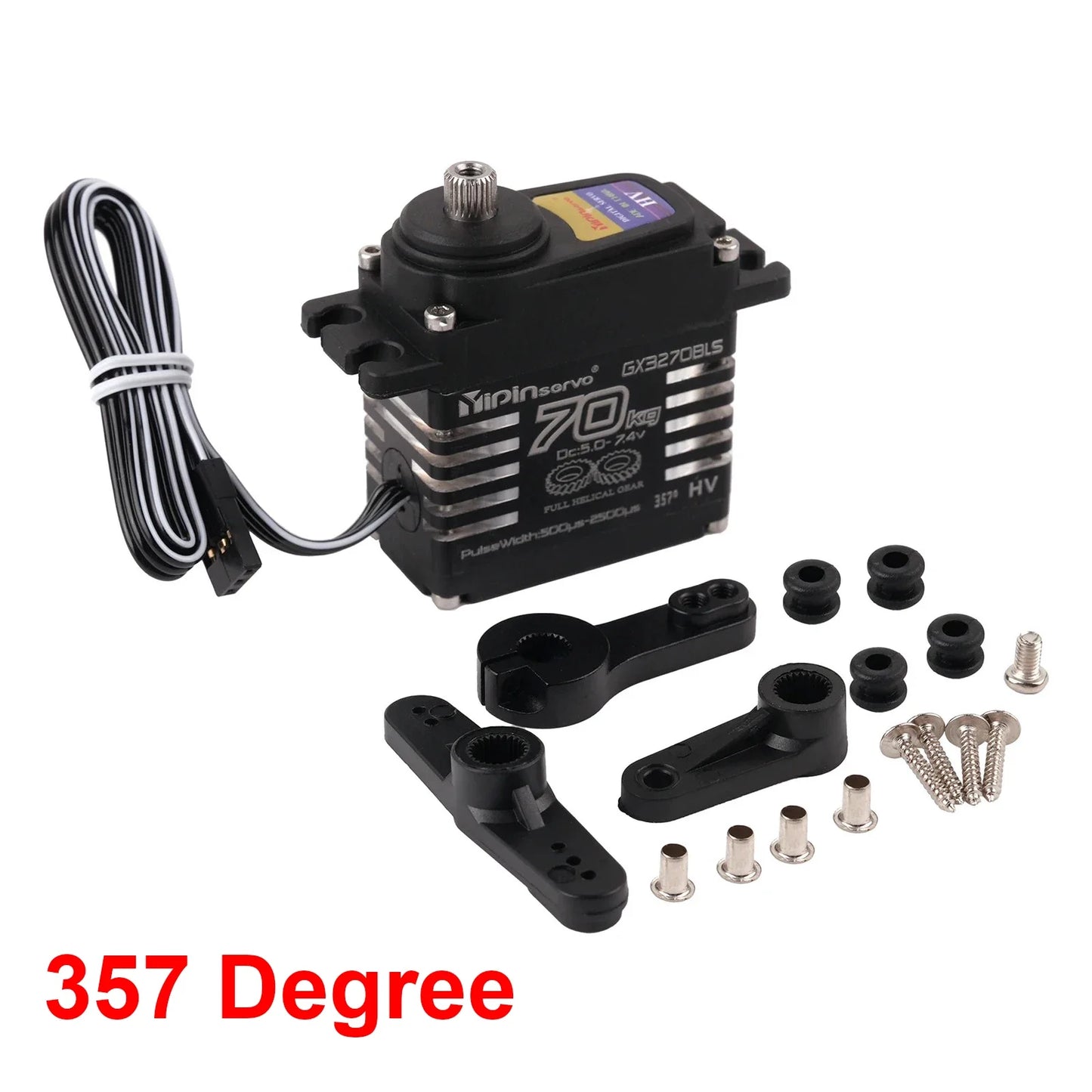

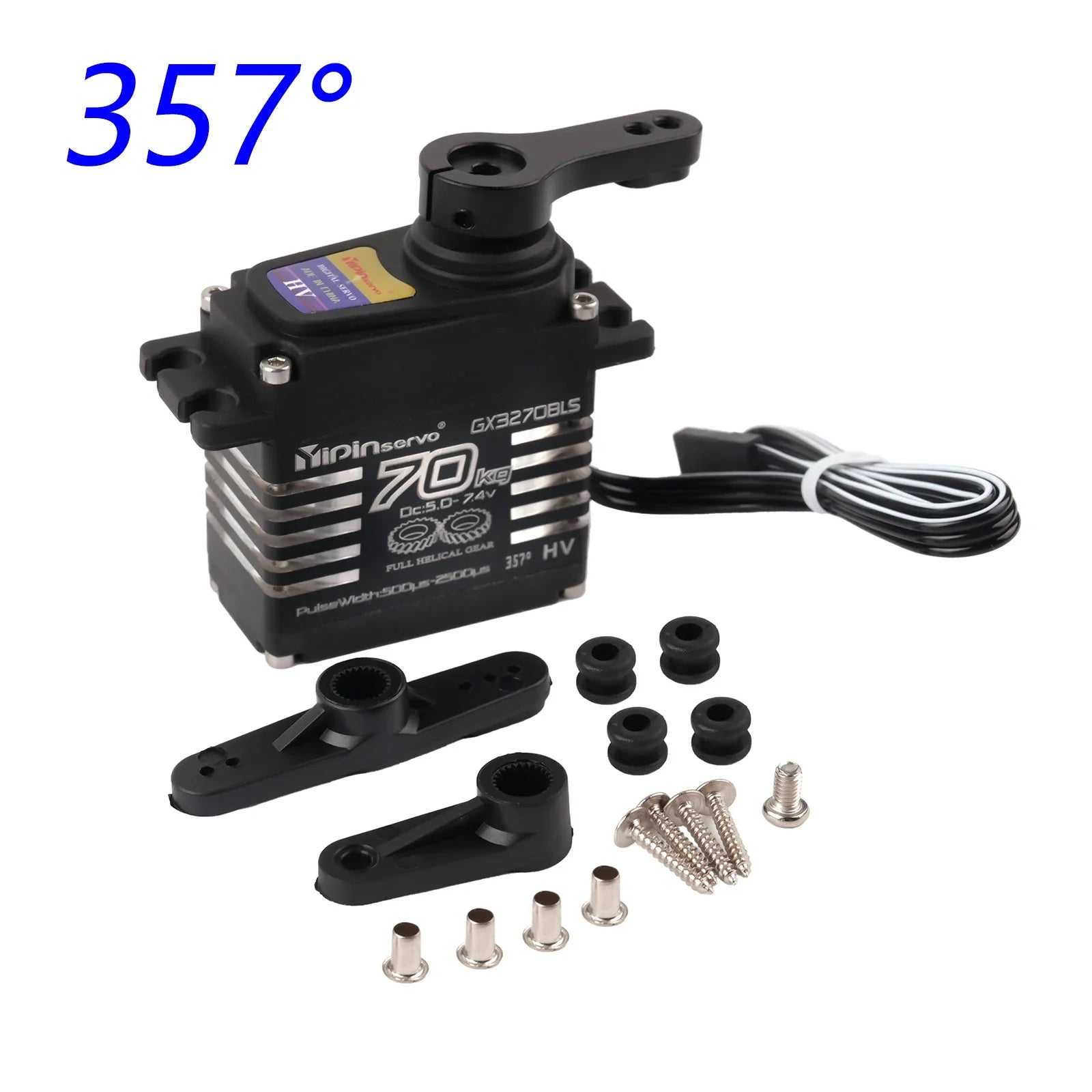

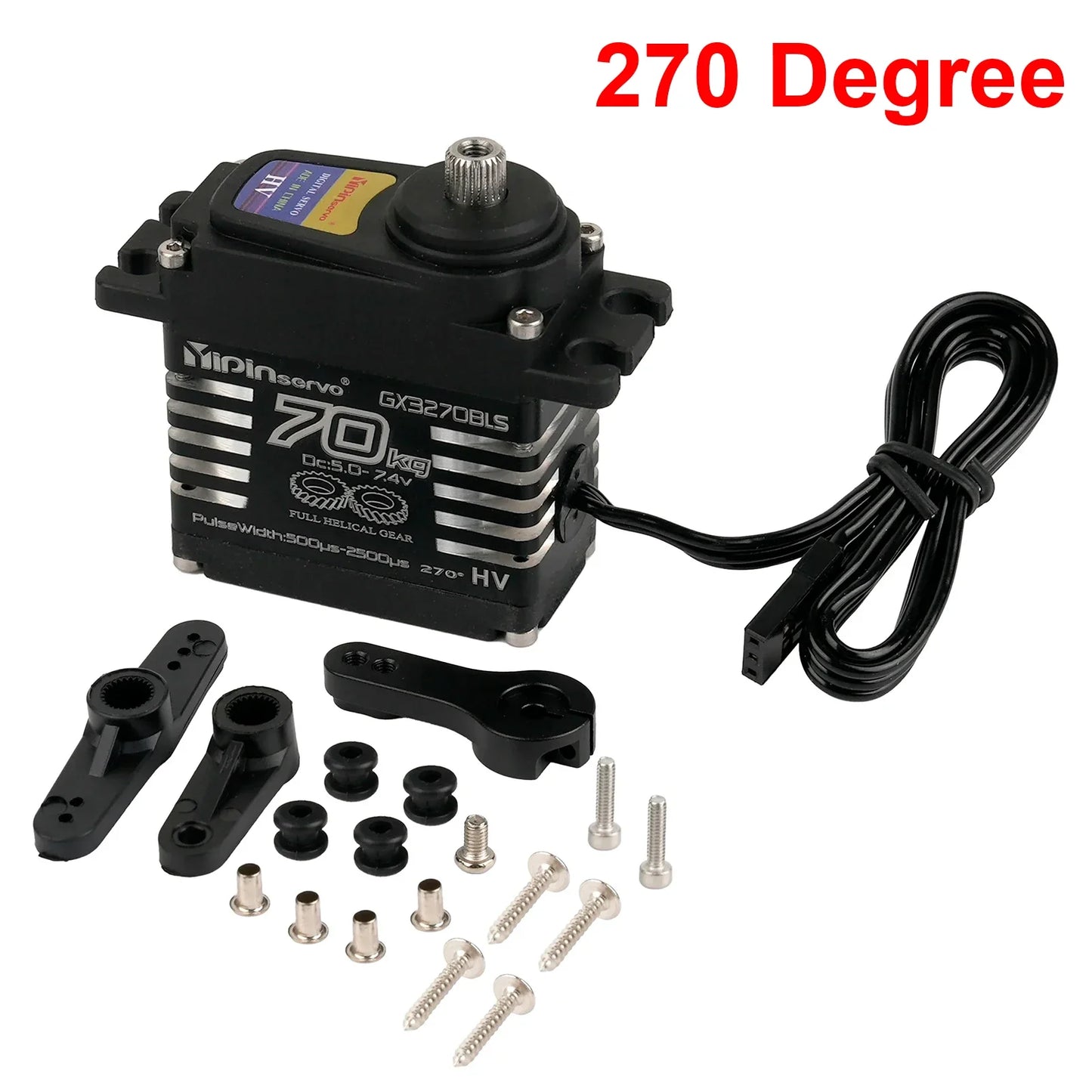

Max.Operating Travel Angle: 358°±10°(500~250Ous)
Neutral Position: 1500us
Reduction ratio: 1:299
Dead Band Width: ≤2us
operating Temperature Range: -20℃~+80C

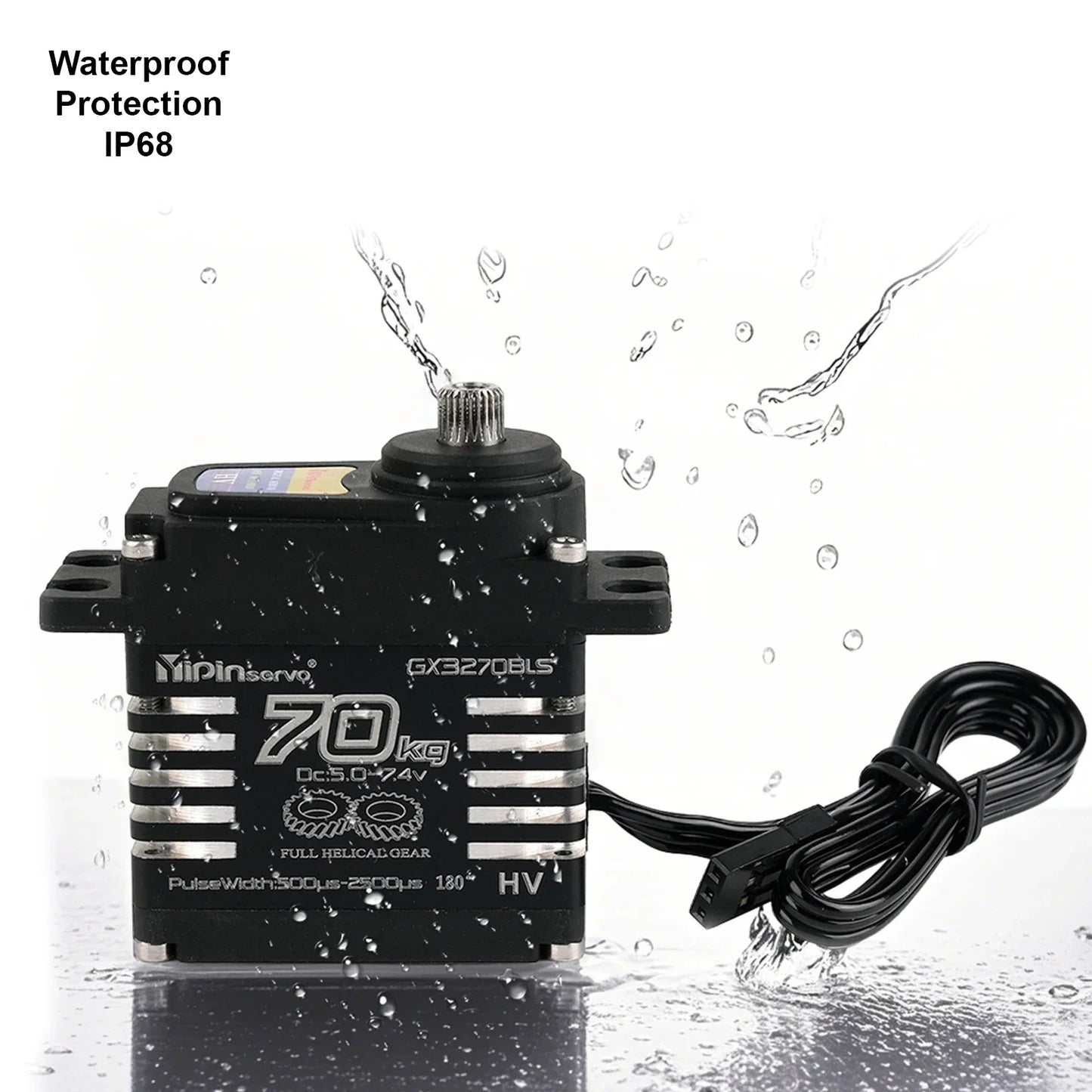

waterproof rating: IP68
Packing list

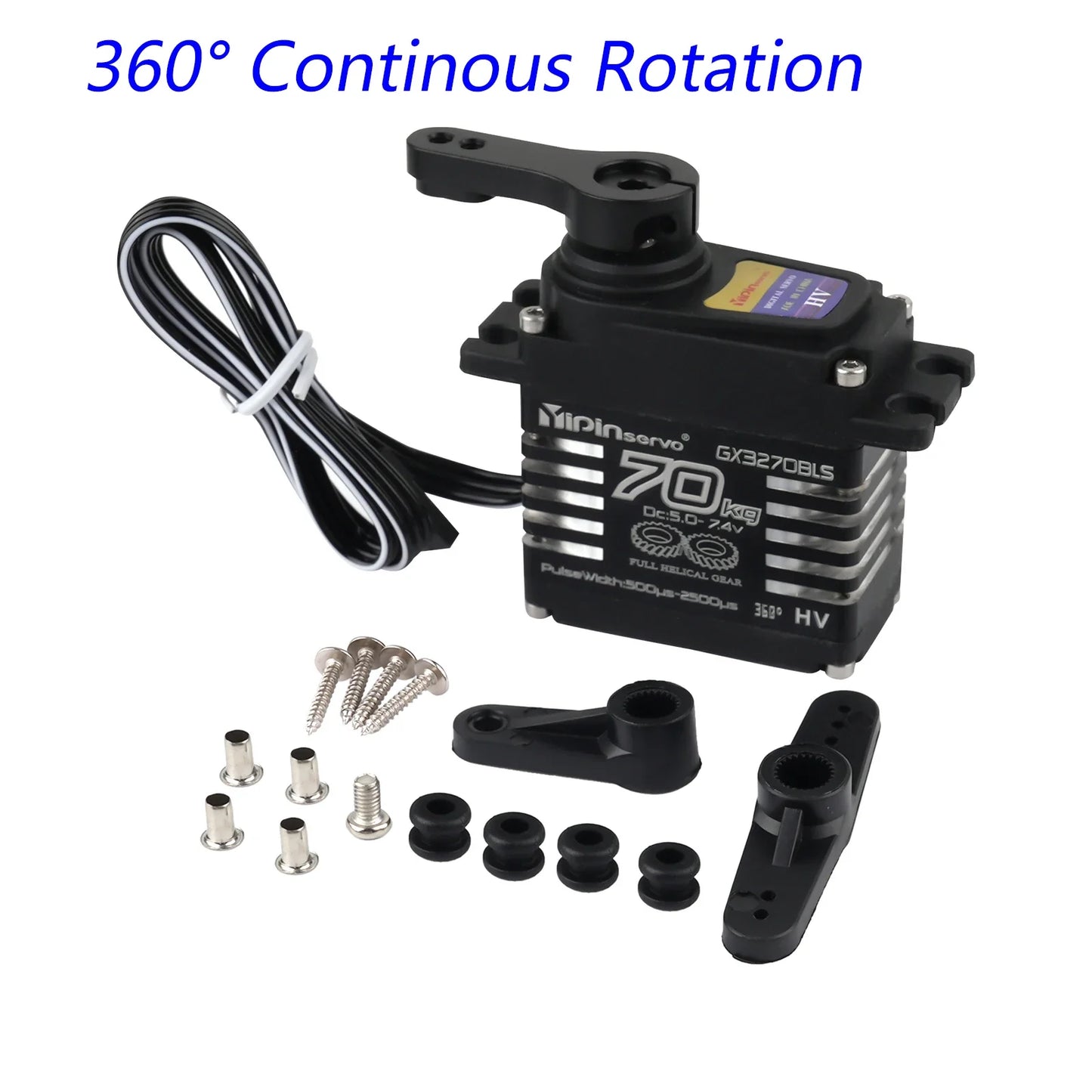

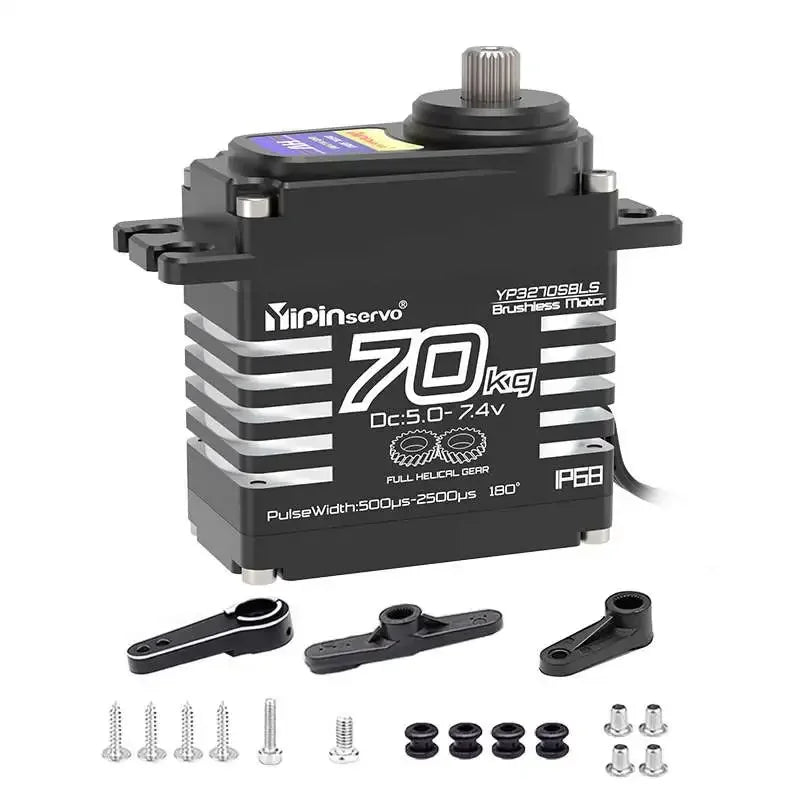

1 X Servo with accessories

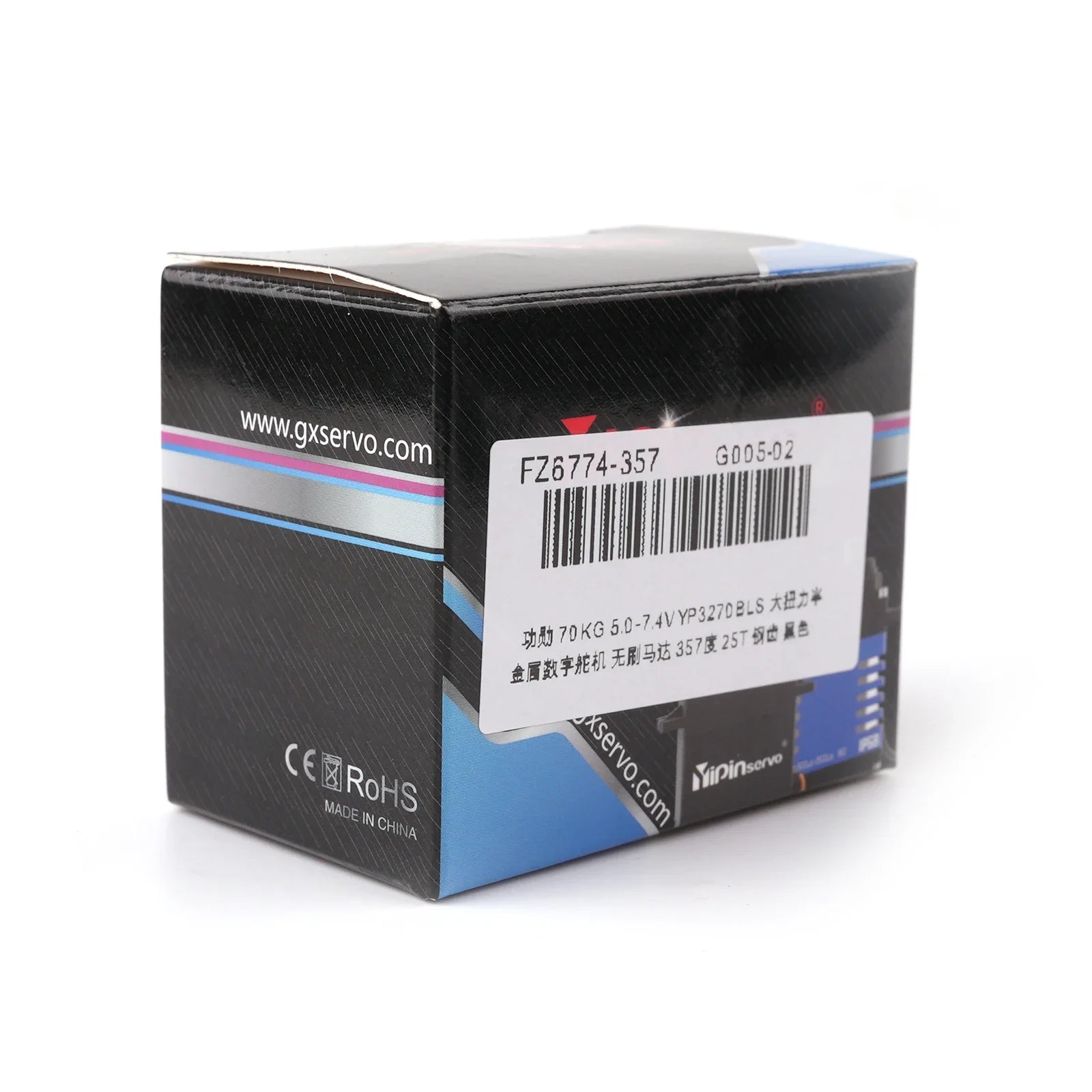

color box packing
